Printronix SV100 Online Bar Code Verifier

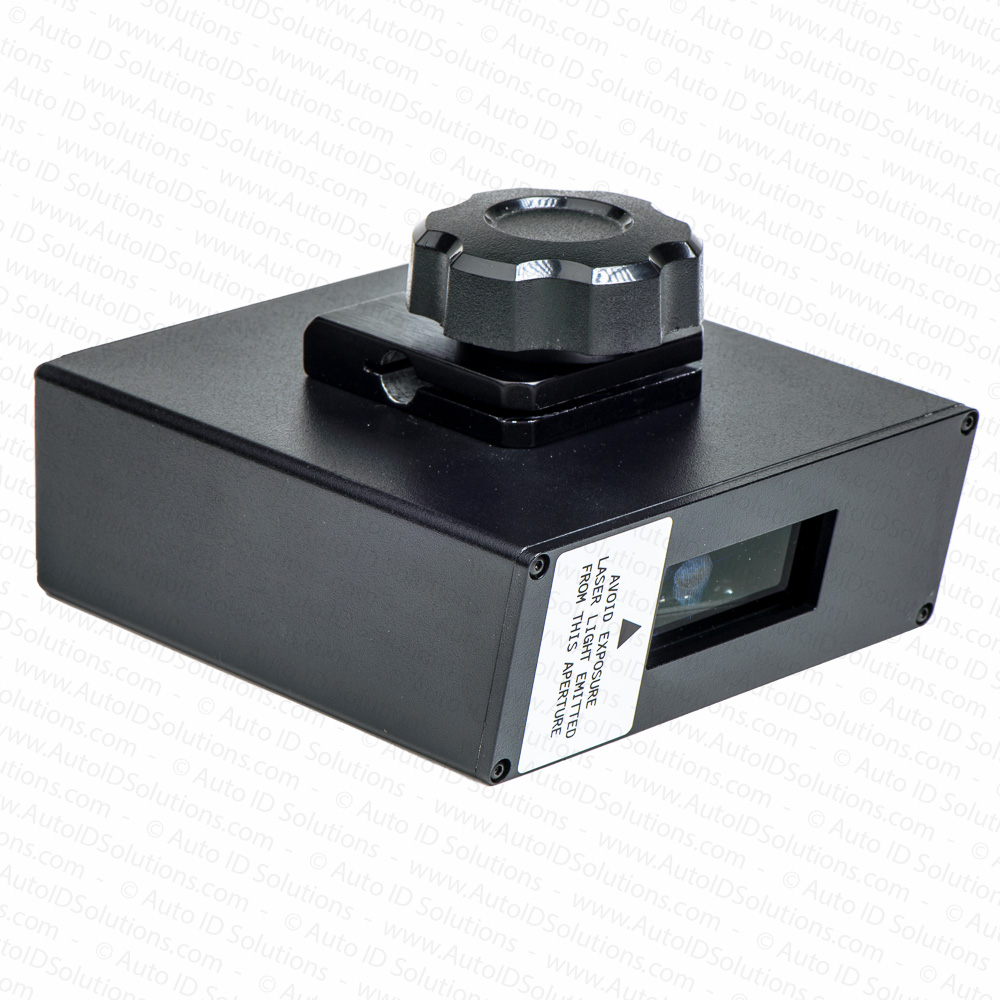

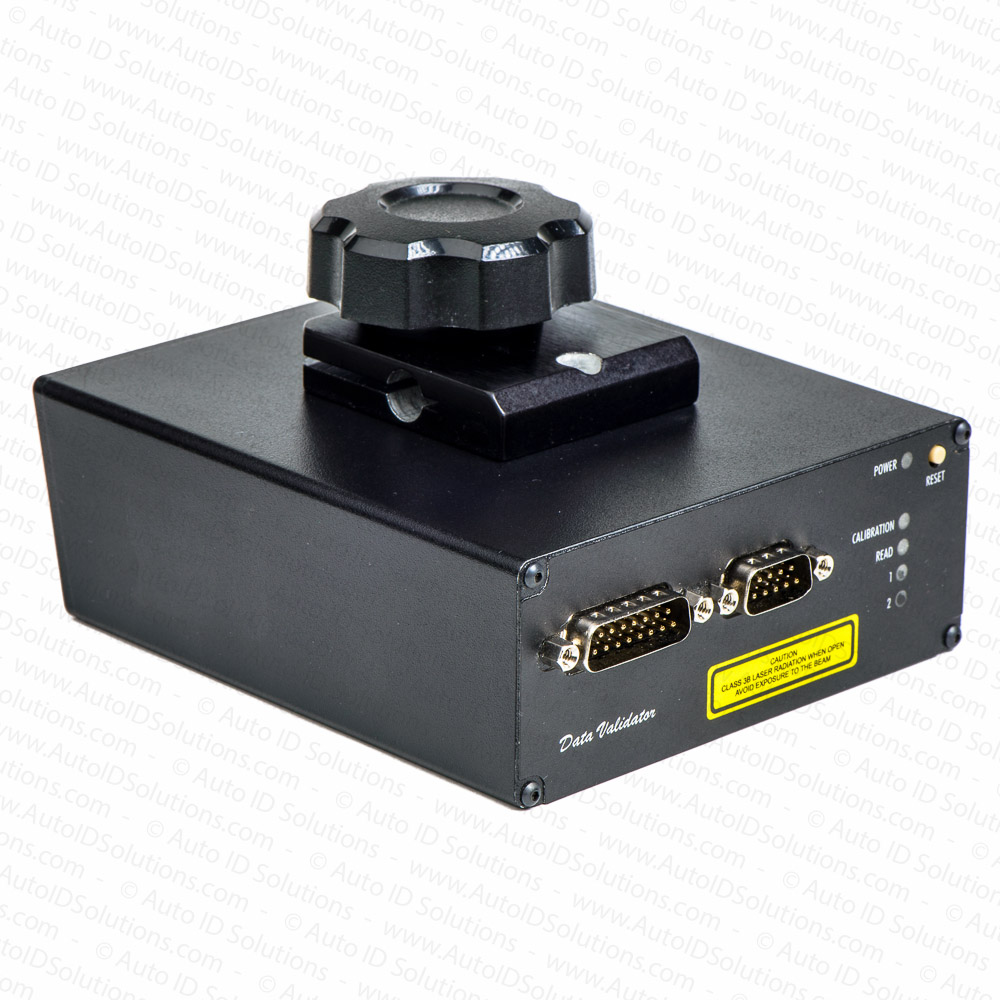

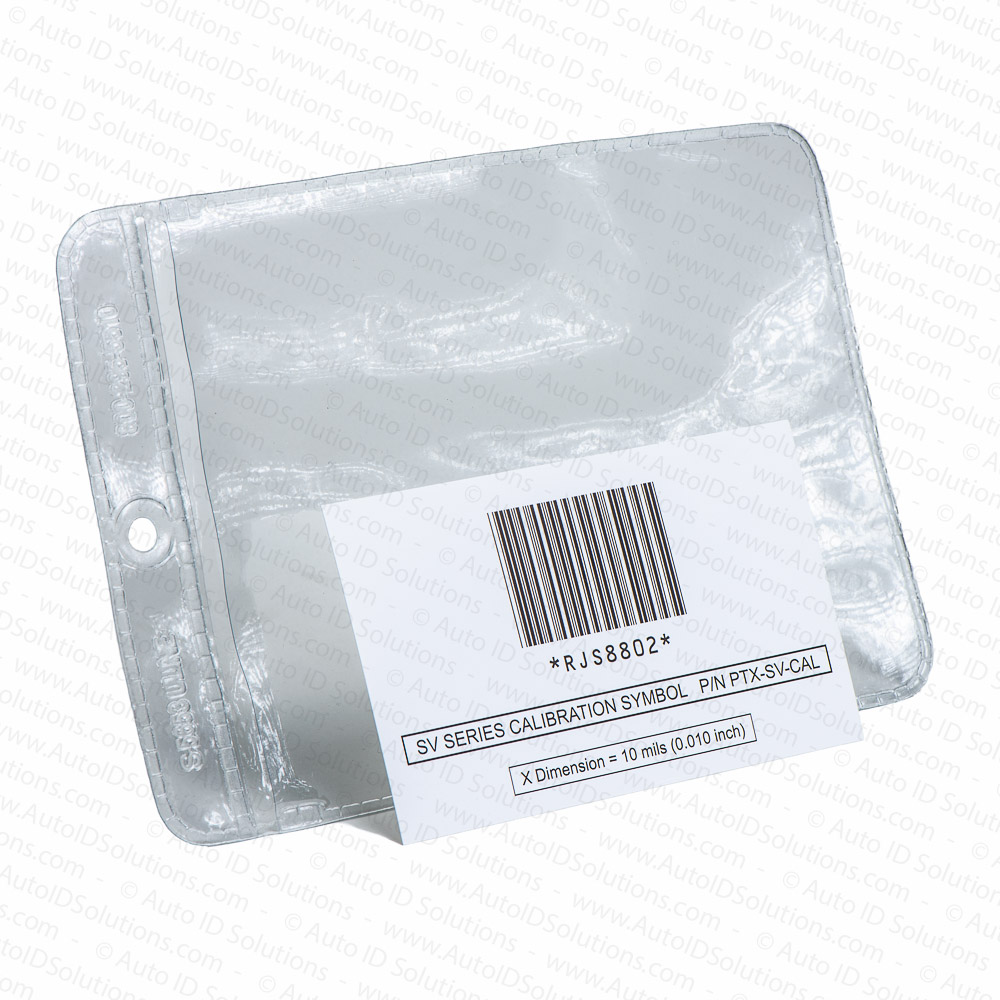

Printronix SV100 Online Barcode Verifier RearPrintronix SV100 Barcode Verifier Calibration Plaque

Printronix SV100 Series Online Bar Code Verifier

$4,990.00 $4,491.00

The Printronix SV100 Series Online Bar Code Verifier provides fixed position scanning and high-speed online ISO/ANSI method verification of linear bar codes. Used for many applications, from thermal transfer to high speed digital imaging on flexographic presses.

SKU: PTX-SV100-2.

Product Description

The Printronix SV100 Series Online Bar Code Verifier provides fixed position scanning and high-speed online ISO/ANSI method verification of linear bar codes, and can be used for many applications–from thermal transfer to high speed digital imaging on flexographic presses. Features of this unit include:

  • 100% Bar code inspection
  • Integration directly to thermal transfer printers
  • Traceable to NIST (National Institute of Standards and Technology)
  • Follows the ISO15416 and ANSI X3.182 Bar Code Inspection Method
  • Conforms to ISO15426-1 Bar Code Verifier Specification
  • Auto-discriminates between all popular symbologies
  • Multiple-scan averaging
  • Traditional analysis also provided

The SV100 series always assures that bar code print quality is at an acceptable level. Instead of the random inspections from a portable or handheld verifier, the SV100 series inspects up to 100% of all bar codes produced. Since the SV100 series provides diagnostic bar code quality information, it can reduce system downtime and save material costs. It does this by isolating the source of the problem. Once the source of the problem is found, it can be corrected before non-readable bar codes are printed and material is wasted. It can also check to make sure that a print mechanism has not failed or gone out of adjustment. In a digital printing environment it even makes sure that the correct data is encoded and that the encoded data is in the proper format.

When installing a new printing or conveyor line the SV100 series is a great tool, since it gives an indication of first time read rates, optimal scanner alignment, optimal conveyor/press speeds, and optimal printer settings and adjustments. The SV100 series finally allows for affordable 100% inspection solutions!

NOTE: The SV100 series verifiers meet the International Organization for Standardization’s “Bar Code Print Quality Test Specification (ISO 15416), the American National Standard Institute’s “Guideline for Bar Code Quality’ (ANSI X3.182-1990), the Uniform Code Council (UCC), and the CEN specifications regarding verification methods and methodology. It also meets International Organization for Standardization’s “Bar Code Verifier Conformance Specification” (ISO 15426-1). This equipment and its documentation were developed to fit into your company’s existing ISO 9000/9001/9002 policies and procedures.

Additional Information

Product Type:

Bar Code Verifier

Brand:

Printronix

Price:

$3000 – $4499

Status:

New

Code Width:

Less than 1.0 in width, Less than 1.5 in width, Less than 2.5 in width, Less than 2.0 in width, Less than 3.0 in width, Less than 4.0 in width, Less than 4.5 in width, Less than 5.0 in width

Code Height:

Less than 0.5 in tall, Less than 1.0 in tall, Less than 1.5 in tall, Less than 2.5 in tall, Greater than 2.5 in, Less than 2.0 in tall, Less than 0.25 in tall, Less than 0.125 in tall

Capt. Method:

Non-Contact

Calib. Plaque:

Yes

Re-certification:

Every 12 Months

Capture Area:

Single Scan Line

ISO/ANSI:

Full, Traditional

Report Types:

Windows Printer, Windows Software

Wavelength:

660nm (Red)

Bar Code Type:

Linear 1D Bar Codes

Scanner Type:

Online, PC

Operating System:

Windows 7, Windows 8, Windows Vista, Windows XP

Aperture Sizes:

6 mils

Industry App:

AIAG, ANSI, CEN, GS1, HIBCC, ISO/IEC, MIL-STD-130M, TAPPI

Symbology:

Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, GS1-128, Interleaved 2 of 5 (ITF), ITF-14, UPC-A, UPC-E
