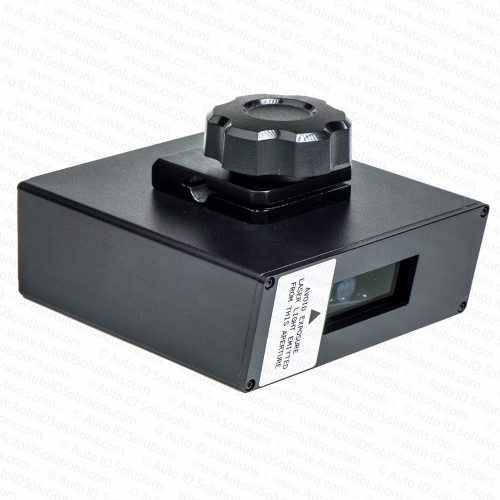

Printronix SV200 Online Verifier
Printronix SV100 Barcode Verifier Calibration PlaquePrintronix SV200 Online Barcode Verifier

Printronix SV200 Series Online Bar Code Verifier

$6,990.00 $6,291.00

Online bar code inspection at the price of a bar code scanner

The SV100/200 series by Printronix provides fixed position scanning and high-speed on-line ISO/ANSI method verification of linear bar codes. This unique instrument can be used for many types of bar code verifying applications, from thermal transfer to high speed digital imaging on flexographic printing presses.

SKU: PTX-SV200.

Product Description

Features

  • 100% Bar code inspection
  • Integrates directly to thermal transfer printers
  • Traceable to NIST (National Institute of Standards and Technology)
  • Follows the ISO15416 and ANSI X3.182 Bar Code Inspection Method
  • Conforms to ISO15426-1 Bar Code Verifier Specification
  • Auto-discriminates between all popular symbologies
  • Multiple scan averaging
  • Traditional analysis also provided

Need to save bar code inspection results or print a Job/Run report? Then be sure to look at our SV Unit Database Software

The SV200 series always assures that bar code print quality is at an acceptable level. Instead of the random inspections from a portable or handheld verifier the SV200 series inspects up to 100% of all bar codes produced. Since the SV200 series provides diagnostic bar code quality information, it can reduce system downtime and save material costs. It does this by isolating the source of the problem. Once the source of the problem is found, it can be corrected before non-readable bar codes are printed and material is wasted. It can also check to make sure that a print mechanism has not failed or gone out of adjustment. In a digital printing environment it even makes sure that the correct data is encoded and that the encoded data is in the proper format.

When installing a new printing or conveyor line the SV200 series is a great tool, since it gives an indication of first time read rates, optimal scanner alignment, optimal conveyor/press speeds, and optimal printer settings and adjustments.

The SV200 series finally allows for affordable 100% inspection solutions.

SV 200 Series Model Description

  • SV200-1 – Scanner/Verifier for Higher Speed Applications
  • SV200-HD – Scanner/Verifier for Higher Speed, High Density Bar Code Symbol Applications

The verifier has five hardware outputs and two inputs. The inputs make it possible to detect an unreadable or missing bar code. The outputs can be used to light a green or red indicator light, sound an audible alarm or even to stop the printer.

The SV200 includes using the Printronix ScanVision software for configuring and viewing trend data when inspecting bar codes.  The ScanVision software is ONLY compatible with Windows 95 and Window XP.  If you are using computer Window 7 or Windows 8, you will need to purchase the Auto ID Solutions developed SV Configurator software.  This software provides all of the set up and configuration option included with the ScanVision software.

If needed, inspection data can be saved to a database for record keeping or future analysis when using the SV Unit Database Software

The SV200 series verifiers meet the International Organization for Standardization’s “Bar Code Print Quality Test Specification (ISO 15416), the American National Standard Institute’s “Guideline for Bar Code Quality’ (ANSI X3.182-1990), the Uniform Code Council (UCC), and the CEN specifications regarding verification methods and methodology. It also meets International Organization for Standardization’s “Bar Code Verifier Conformance Specification” (ISO 15426-1).

This equipment and its documentation were developed to fit into your company’s existing ISO 9000/9001/9002 policies and procedures.

The SV200 has many mounting and configuration options.  The following items may be necessary but NOT included with the purchase of a Printronix SV200:

  • Mounting Stand
  • Interface Kits
  • Light Stack Indicator
  • Power Supply
  • Communication Cable



Additional Information

Product Type:

Bar Code Verifier

Brand:

Printronix

Price:

$4500 or more

Status:

New

Code Width:

Less than 1.0 in width, Less than 1.5 in width, Less than 2.5 in width, Less than 2.0 in width, Less than 3.0 in width, Less than 4.0 in width, Less than 4.5 in width, Less than 5.0 in width

Code Height:

Less than 0.5 in tall, Less than 1.0 in tall, Less than 1.5 in tall, Less than 2.5 in tall, Greater than 2.5 in, Less than 2.0 in tall, Less than 0.25 in tall, Less than 0.125 in tall

Capt. Method:

Non-Contact

Calib. Plaque:

Yes

Re-certification:

Every 12 Months

Capture Area:

Single Scan Line

ISO/ANSI:

Full, Traditional

Report Types:

Windows Printer, Windows Software

Wavelength:

660nm (Red)

Bar Code Type:

Linear 1D Bar Codes

Scanner Type:

Online

Operating System:

Windows 7, Windows 8, Windows Vista, Windows XP

Aperture Sizes:

6 mils

Industry App:

AIAG, ANSI, CEN, GS1, HIBCC, ISO/IEC, MIL-STD-130M, TAPPI

Symbology:

Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, GS1-128, Interleaved 2 of 5 (ITF), ITF-14, UPC-A, UPC-E
