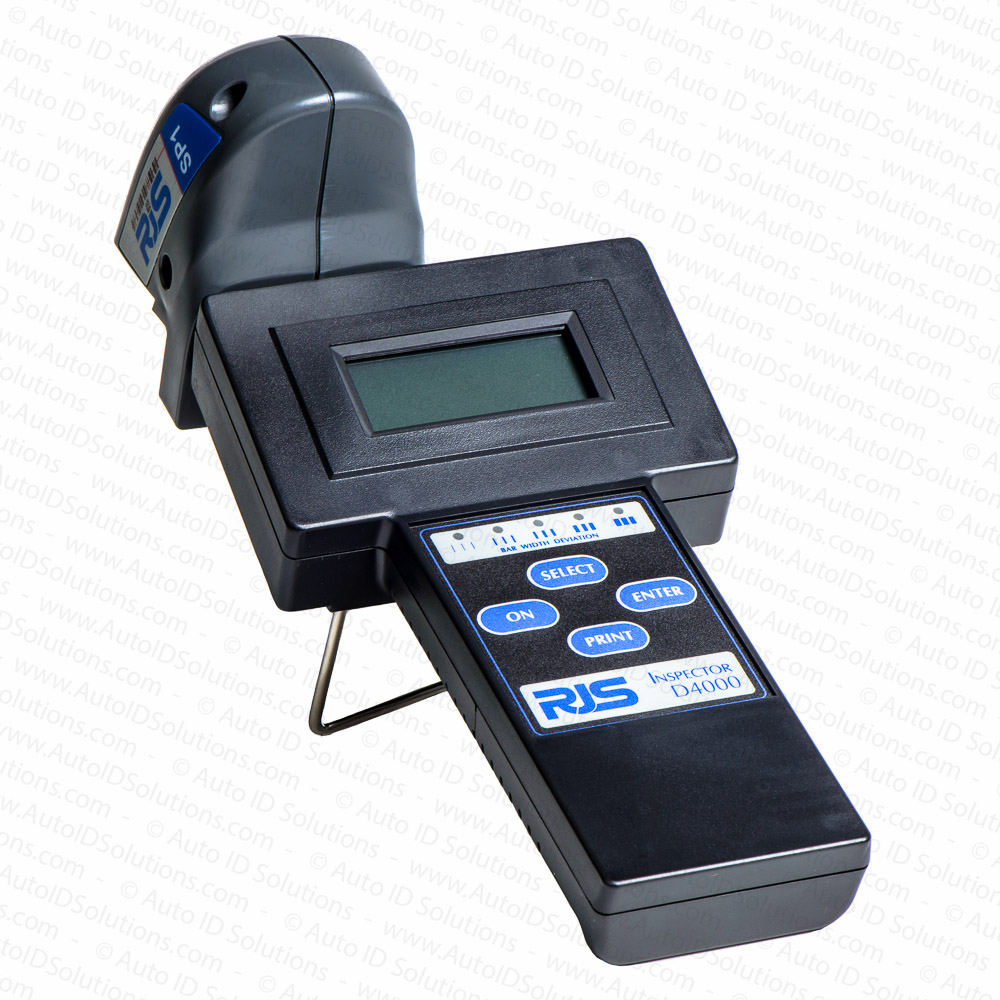

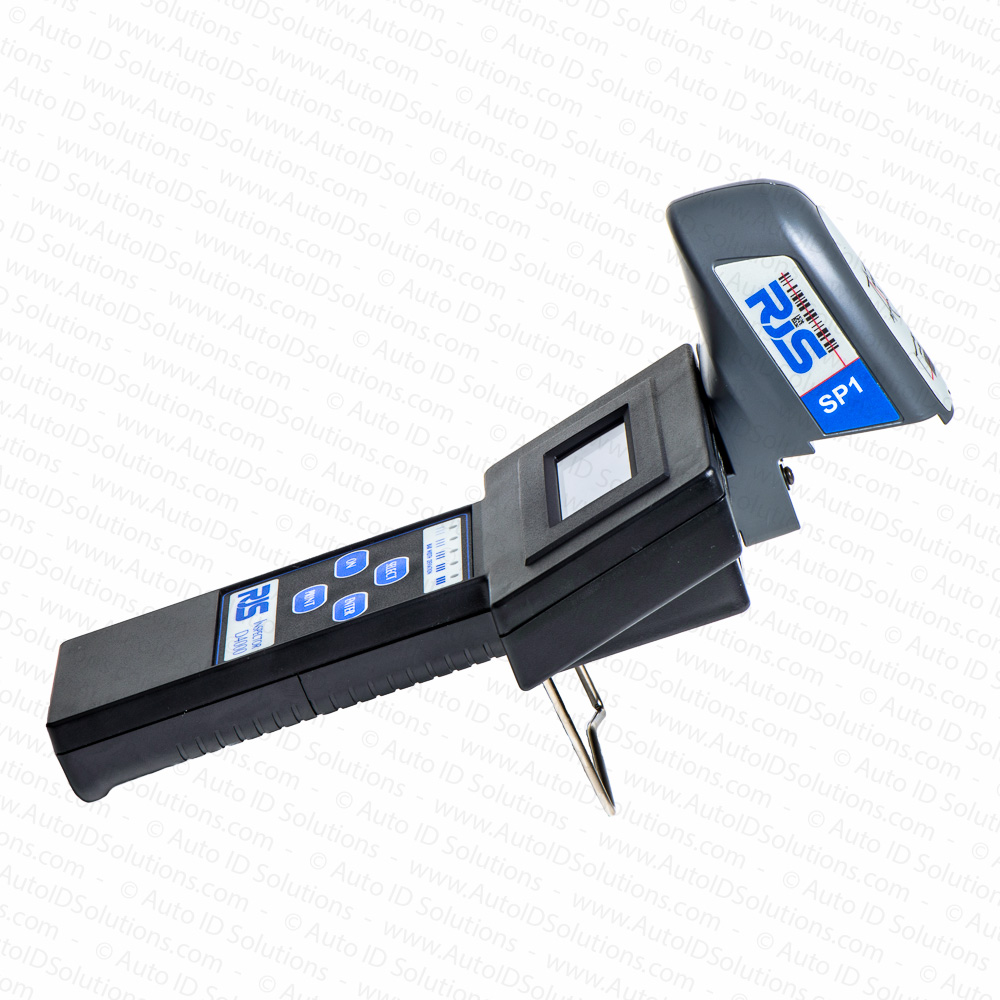

RJS Inspector D4000 SP1 – Single Piece Linear Bar Code Verifier

NOTE: RJS has discontinued the D4000 SP1 verifier. We recommend the D4000 CR2 or the Inspector 5000 CR3

The RJS Inspector D4000 SP1 Single Piece Linear Bar Code Verifier is an extremely easy to use, point-and-shoot verifier in a single piece design. It requires virtually no user training and analyzes most of the essential traditional verification parameters. It also provides the ISO/ANSI method decodability calculation and percent of decode information.

SKU: RJS-D4000-SP.

Product Description

The RJS Inspector D4000 SP1 Single Piece Linear Bar Code Verifier is an extremely easy to use, point-and-shoot verifier in a single piece design. It requires virtually no user training and analyzes most of the essential traditional verification parameters. It also provides the ISO/ANSI method decodability calculation and percent of decode information. Features of this unit include:

  • Point-and-Shoot scanning
  • ISO15416 and ANSI X3.182 Bar Code Inspection (Decodability only)
  • Auto-discrimination between all popular symbologies
  • Multiple-scan averaging
  • Traditional analysis also provided
  • Battery charger and NiCad batteries included

This truly unique and powerful instrument is also easy to use. All the popular linear symbologies are supported. Store and print capability, multiple scan averaging and sub-symbology choices are easily accessed through a simple four-button user interface. Analysis information appears immediately on a 32-character alphanumeric liquid crystal display (LCD). A distinct audible tone and a series of five colored LED’s indicate whether a bar code is in or out of specification.

NOTE: The Inspector D4000 meets the International Organization for Standardization’s “Bar Code Print Quality Test Specification (ISO 15416), the American National Standard Institute’s “Guideline for Bar Code Quality’ (ANSI X3.182-1990), the Uniform Code Council (UCC), and the CEN specifications regarding the decodability calculation method. It does NOT meet the International Organization for Standardization’s “Bar Code Verifier Conformance Specification” (ISO 15426-1), since only one parameter is tested. You must use the D4000 Auto-Optic option for full ISO/ANSI verification to ISO 15426-1 standards.

Additional information

Weight 5 lbs
Dimensions 15 × 15 × 6 in
Product Type:

Brand:

Price:

Status:

Code Width:

, , , , , , , , ,

Code Height:

, , , , , , ,

Capt. Method:

Calib. Plaque:

Re-certification:

Capture Area:

ISO/ANSI:

Report Types:

,

Wavelength:

Bar Code Type:

Scanner Type:

Aperture Sizes:

Industry App:

, , , , , , ,

Model:

Symbology:

, , , , , , , , ,

Battery Charger Style:

110VAC US Style Plug, 220VAC EU Style Plug
